Automotive Headlight Assembly Line

Headlight Assembly Line for H4 Halogen Bulb

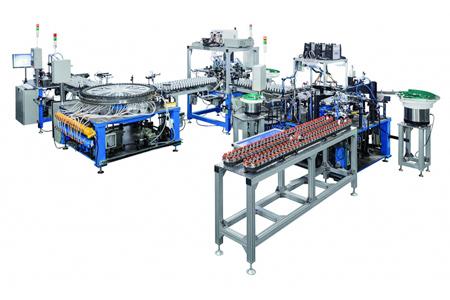

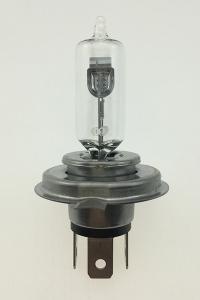

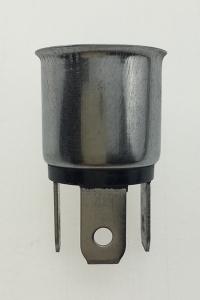

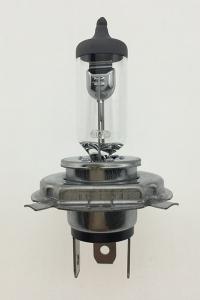

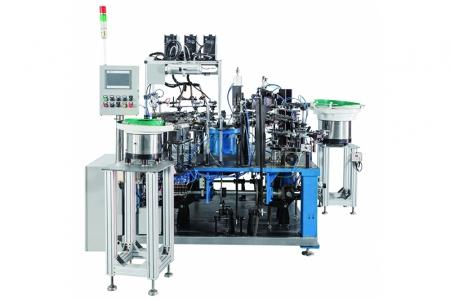

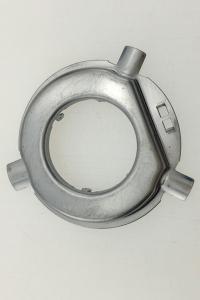

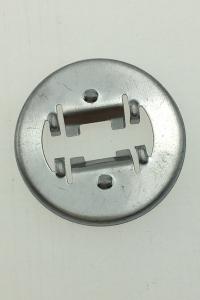

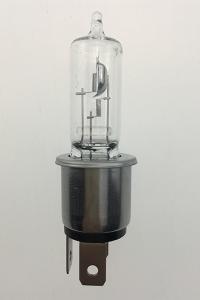

The headlight assembly line for H4 halogen bulbs automatically combines the halogen capsule bulb, metal cap, bulb holder, and prefocus base to form H4 halogen bulbs. This assembly line is characterized by high automation and is capable of inspecting the products in-real time. This line features headlight bulb alignment machines for adjusting focus and installing, as well as the optional headlight bulb adjusting machine and headlight bulb specification data inspecting machine following customer needs.

The feature of this headlight assembly line for H4 halogen bulb is that it operates capping before halogen capsule installing. It enables the assembly line suitable for the assembly of halogen capsule with different diameters, as well as adaptable to hard glass and quartz glass halogen capsule.

Operator count: 2
Size: 7911X5072mm

+

=

+

=

+

=

Bulb head coating

The Fsfocus headlight bulb alignment machine can complete the common steps of bulb holder installation. The gas tightness is also operated to inspect whether the welding points feature an open solder. The headlight quality is ensured from the primary step. After bulb head installation, our equipment will also perform lighting test on the semi-finished headlight.

Parameters

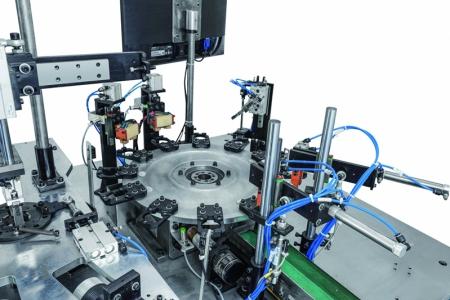

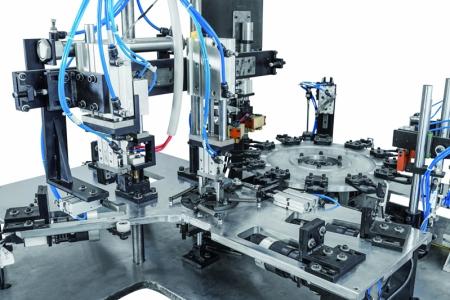

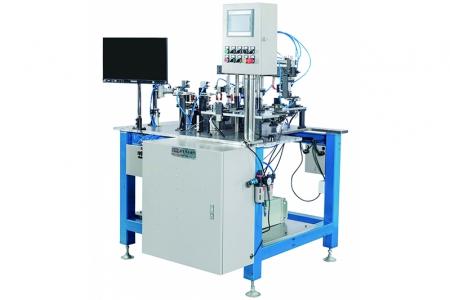

The headlight bulb alignment machine adopts a manipulator to use the end cap for adjusting focus (avoiding the damage on halogen capsule bulb when being clamped). It moves the filament to the set position and then weld. The one-step focus adjusting is completed.

Parameters

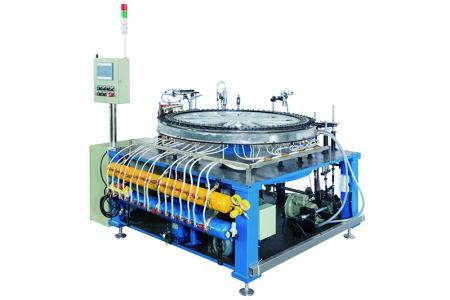

The automotive light bulb head coating machine operates electric baking after coating bulb head. The electric baked coating is more stable. Fsfocus can also offer the fire baking type for customers. But if your halogen capsule adopts hard glass, we recommend the use of electric baking. Because the using of fire baking may cause the halogen capsule to produce stress and burst.

Parameters

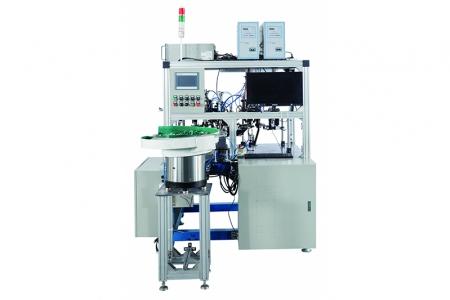

This headlight bulb specification data inspecting machine is designed to measure a/26, a/23.5, b1/29.5, b1/33, c/29.5,c/33, e, f, lc, lr, α and other 22 parameters. Its visual software system can complete the measurement in milliseconds.

Parameters
